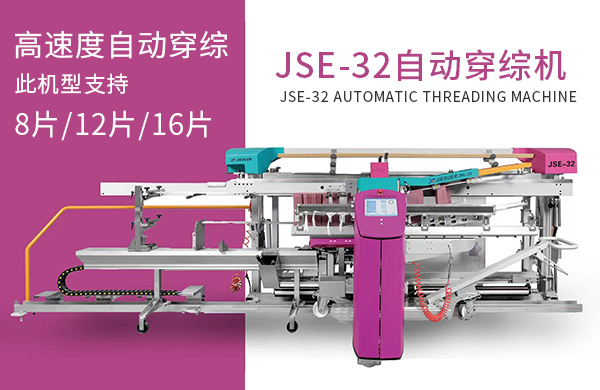

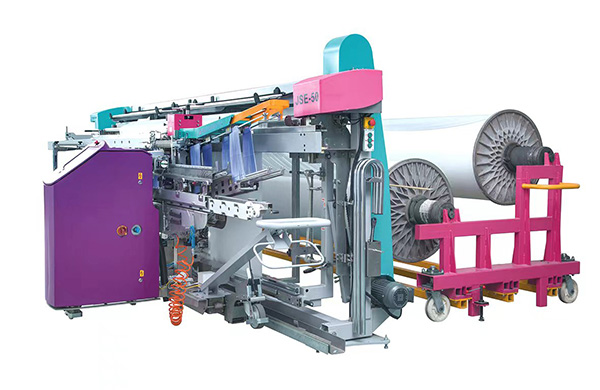

JSE-32 Automatic Drawing-in MachinePrecision & Efficiency for Filament and High-Count Yarns
The JSE-32 high-speed automatic drawing-in system is the premier choice for high-end fabrics, including filaments, fine denier synthetics, and high-count cotton. It is widely utilized in the production of sunshades, premium linings, leisure wear, and industrial textiles.

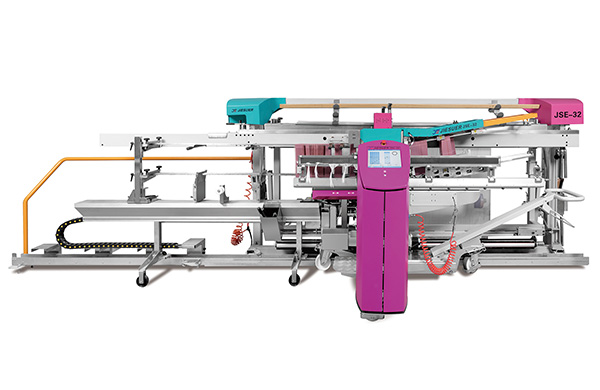

The system comprises a high-mobility drawing-in unit and stationary warp frames, fully automating the process of drawing warp yarns into healds and the reed. Standard configurations support 8, 12, or 16 heald carrier rods. Once drawing-in is complete, the compact unit (warp beam, healds, and reed) can be easily transported to the weaving machine or stored.
Core Features:
High-Speed Stability: Equipped with core electrical systems from Germany and Japan to ensure superior drawing-in accuracy and stability during continuous high-speed operation.
Intelligent Operation: Features an intuitive graphical HMI and smart guidance system, significantly simplifying programming and reducing dependence on highly skilled labor.

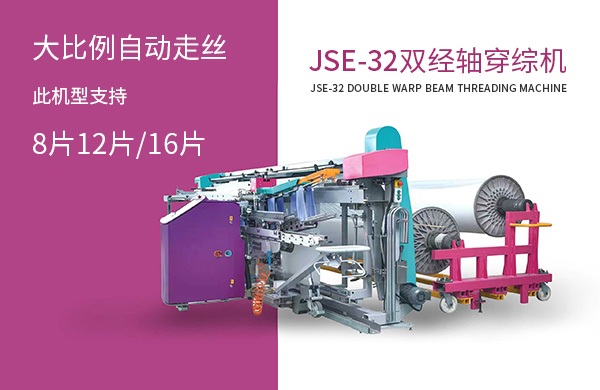

Flexible Adaptability: Small footprint and versatile layouts allow for seamless integration into existing production lines. Optimized yarn clamping and layer management specifically cater to double-beam filament applications for efficient processing.
JSE32-Technical Specifications
|
Category |
Specifications |
|
|
Basic Configuration |
1 Drawing-in unit, 2 Drawing-in frames |
|
|
Optional Configuration |
Vacuum nozzles, Leasing units, Layering devices, Multi-layer yarn creels |
|
|
Capacity (per 24h) |
Up to 300,000 ends (depending on yarn properties) |
|
|
Warp Layers |
Single layer (with/without 1:1 lease); Multi-layers with separation lines |
|
|
Yarn Materials |
Cotton/Blends (carded/combed), Wool (worsted/woolen), Silk, Mono/Multifilament, Special yarns on request |
|
|
Warp Beam Dimensions |
Max. working width: 360 cm; Max. beam diameter: 120 cm |
|
|
Yarn Count |
Cotton: 3–100S; Synthetic: 20D–500D |
|
|
Optical Yarn Detection |
With/without 1:1 lease; Pattern repeat recognition |
|
|
Heald Types |
J/C-shaped steel healds or plastic healds; Single or twin healds |
|
|
Heald Specifications |
Length: 260–382mm; Thickness: 0.23–0.38mm (Steel) / 0.3–0.65mm (Plastic) |
|
|
Heald Eyelet |
Min. 1.2 x 5.5mm; Max. offset: 10mm |
|
|
Heald Carrier Rods |
Up to 16 rods |
|
|
Reed Types & Size |
Flat or Profile reed; Max. width: 230 cm; Density: 20–350 dents/dm |
|
|
Reed Dimensions |
Height: 80–150mm; Frame height: 40–100mm |
|
|
Electrical Values |
100–240VAC, 50/60Hz; Power: 1.0 kW (Avg) / 3.0 kVA (Max); Fuse: 10–16A |
|
|
Pneumatic Values |
Pressure: 0.6–1.0 MPa (Oil & particle free); Consumption: ~420 L/min |
|
|
Air Quality |
ISO 8573.1 Class 3; Residual oil: <1mg/Nm³; Particles: <5μm |
|
|
Environmental Data |
Temp: +10°C to +40°C; Humidity: 30–95% (RH) |
|
|
Foundation Req. |
Max. height diff: +/-15mm; Load capacity: >1200kg/m² |
|
|
Lighting & Noise |
Working area: 700 Lux; Noise level: LpA = 80dB(A) |
